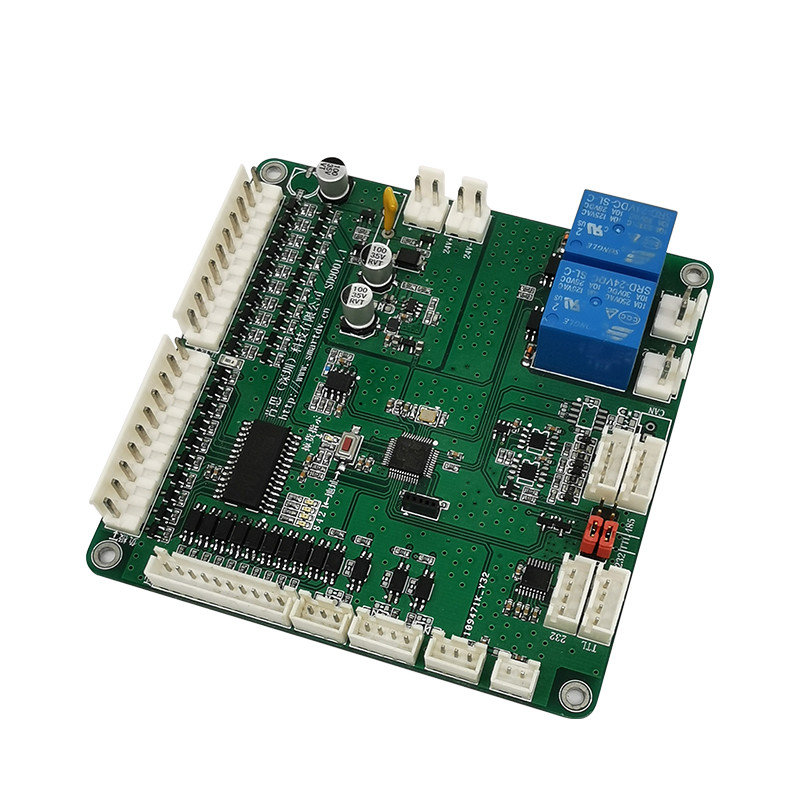

    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly

    Ask Lasest Price
    Brand Name : CKS
    Model Number : CKS-Customized
    Certification : ISO9001
    Price : USD 0.5-5
    Payment Terms : L/C, Western Union, MoneyGram, T/T
    Supply Ability : 300000 Pieces per Month
    Delivery Time : 90-120 work days
    • Product Details
    • Company Profile

    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly

    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly

    We mainly offer High-Precision Single-Side, Double-Side, Multi-layer Printed Circuit Boards, LED Aluminium Printed Circuit Board, Customers Components Procurement and PCB Assembly (SMT) Business.

    Our main service:

      • PCB development and design
      • PCB manufacturing from 1 to 32 layers(Rigid PCB,Flexible PCB,Ceramci PCB,Aluminum PCB)
      • PCB Clone
      • Component sourcing
      • PCB Assembly
      • Write program for customers
      • PCB/ PCBA Test

    In order to make sure the delivery products are 100% good, we have strick quality control, suh as IQC incoming inspection, SPI solder paste inspection, Online AOI testing, SMT first piece inspection, IPQC product inspection, Offline AOI detection, X-RAY-welding inspection, QC manual inspection, and QA shipment inspection.


    Quality System:

    1. ISO-9001:2018 Quality System Standard
    2. Quality Standard: IPC-610-D class 2,
    3. Soldering Standard: J-STD-001 class 1,2,3
    4. ESD Standard: ESD-MIL-STD-1686
    5. Workshop management:5S
    6. FAI-first article inspection
    7. In process visual inspection
    8. AOI inspection
    9. Machine calibration and preventative maintenance
    10. ERP material and process management ( ERP=enterprise resource planning computer system)

    Common packaging:


    PCB Bare Board: Vacuum and Bubble package

    PCB Assembly Board: ESD package with bubble protected


    Also, customized packing is acceptable

    .

    Regular Cartons Specification.


    Regular Cartons SpecificationNo. Dimension (L*W*H)
    Small Size33cm*28.5cm*18.5cm
    Medium Size44.5cm*30cm*15cm
    Big Size51.5cm*32.5cm*17.5cm


    Customized Cartons:
    Carton outside according to the requirements of customers printed the name of the customer address, mark, the customer needs to specify the destination and other information.

    PCB board manufacture and PCBA service:

    * PCB board manufacture and assembly service
    * PCB board made, circuit board parts purchased by us
    * Electronic testing circuit board or PCBA
    * One stop service from PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery
    * RoHS Directive-compliant, lead-free
    * Fast delivery, anti-static package
    FR-4 Process capability
    NOItemCraft Ability
    1Surface FinishHASL,Immersion Gold,Gold Plating,OSP,Immersion Tin,etc
    2Layer1-32 layers
    3Min.Line Width4mil
    4Min.Line Space4mil
    5Min.Space between Pad to Pad3mil
    6Min.Hole Diameter0.20mm
    7Min.Bonding Pad Diameter0.20mm
    8Max.Proportion of Drilling Hole and Board Thickness1:10
    9Max.Size of Finish Board23inch*35inch
    10Rang of Finish Board′s Thickness0.21-3.2mm

    Q1: What service do you have?
    CKS: We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal, final assembly,

    testing and other value-added service.


    Q2: What are the main products of your PCB/PCBA services?
    CKS: PCB/PCBA services are mainly for the industries including Medical,Automotation.

    Development including Switching power supply,charger boards and Custom light fixture.


    Q3: Can we inspect quality during production?
    CKS: We are welcome and transparent on each production process, inspect our production process and

    check in house.


    Q4: How can we ensure our information should not let third party to see our design?

    CKS: We are willing to sign NDA effect by customer side local law and promising to keep customers data in high

    confidential level.


    Q5: Do you have any minimum order quantity (MOQ) requirement?
    CKS: We do not have MOQ requirement, we can support your projects starting from prototype to mass production.


    PCBA Manufacturer Pcba Supplier FR4 Circuit Board AssemblyPCBA Manufacturer Pcba Supplier FR4 Circuit Board AssemblyPCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly


    PCBA FUNCTION TEST


    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly


    LASER MACHINE

    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly


    SMT WORKSHOP

    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly

    DIP WORKSHOP
    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly
    FINISHED ASSEMBLY WORKSHOP
    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly

    All test before shipping

    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly
    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly
    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly

    AUTOMATIC SCREW MACHINE

    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly
    X-RAY
    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly

    APPLICATION

    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly


    Product usage


    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly

    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly


    OUR COMPANY

    PCBA Manufacturer Pcba Supplier FR4 Circuit Board Assembly
