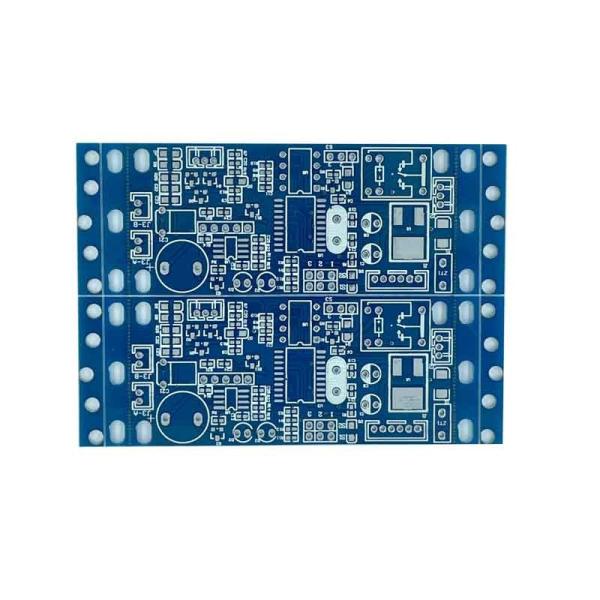

2-32L 3mil USB PCBA Power Supply Circuit Board HASL Leadfree

Ask Lasest Price
Brand Name :	CKS
Model Number :	CKS-Customized-06
Certification :	ISO9001
Price :	USD 0.43-0.81
Payment Terms :	L/C, Western Union, MoneyGram, T/T
Supply Ability :	320000 Pieces per Month
Delivery Time :	7-14 work days

Add to Cart

Product Details
Company Profile

2-32L 3mil USB PCBA Power Supply Circuit Board HASL Leadfree

2-32L 3mil USB PCBA Power Supply Circuit Board HASL Leadfree

Our Company Mission

To maintain the competitive superiority of our customers and ourselves in the market place

With our material procurement, flexible production line, and precise quality control,

we are committed to bringing our customers the very best in terms of quality, yield, and cost efficiency.

Our philosophy is that quality is never an accident.

Specification of PCB Manufacturing

Max panel size	32'20'(800mm508mm)
Minimum track/gap IL	0.075mm/0.075mm(3mil/3mil)
Min annular ring on inner layer one side	3mil(0.075mm)
Maximum Cu weight OL	6oz(210um)
Maximum Cu weight 1L	12oz(420um)
Finished board thickness	0.20-6mm
Layer count	2-32L
Layer to layer registration	±3mil(±76um)
Min finished hole diameter	0.15mm(6mil),0.1mm(4mil) for HDI
Hole position Accuracy	±2mil(±50um)
Slot hloe Tolerance	±3mil(±75um)
PTH diameter tolerance	±2mil(±50um)
NPTH diameter tolerance	±1mil(25±um)
Max Aspect ratio PTH	10:1
Copper on the wall of the holes	0.4-2mil(10-50um)
Grapic pattern registration tolerance	±3mil(0.075um)
Minimum track/gap 1L(mil)-copper weight dependant	3mil/3mil(75um/75um)
The track Etching tolerance	±1mil(±25um)

Specification:

Factory & Production Lines:

2-32L 3mil USB PCBA Power Supply Circuit Board HASL Leadfree

FAQ

Customer: Are you a factory ?
CKS: yes, we are a professiongal manufacturer factory of Consumer electronics products.
Our factory is located in Floor 3rd to 4th, K Building,Jinchangda Science and Technology Park,Shangwei Villiage, Zhangkengjing Community ,Guanlan Street, Longhua District,Shenzhen, Guangdong, China,518105. We warmly welcome you to visit our factory.

Customer: What is your price terms?
CKS: Normally FOB(free on board), CIF(cost insurance and freight), EX-work.

Customer: which payment terms do you accept?
CKS: we usually accept the following payment terms T/T, western union, money gram, Paypal, and if a Larger amount, we also accept L/C and so on. you can also tell us about your payment way !

Customer: Can you produce the goods as customer design?
CKS:Welcome to send us the design or sample, we will calculated the cost and unit price for you as soon as possible.

Customer: What is your MOQ. And how long is the delivery time?
CKS: Our MOQ is 1pc, We usually have in stock if the quantity is no more than 3000pcs, If you order is over 3000pcs, We need work days to prepare the goods, so it means when received you deposit we can deliver the goods to you in 7days.

Customer: How about the products packing?
CKS: Flexible packing according to the specific requirements of the clients.
Welcome to visit CKS . Please feel free to contact us .
